Learn the fundamentals of using the Smart Home Floorplan editor.

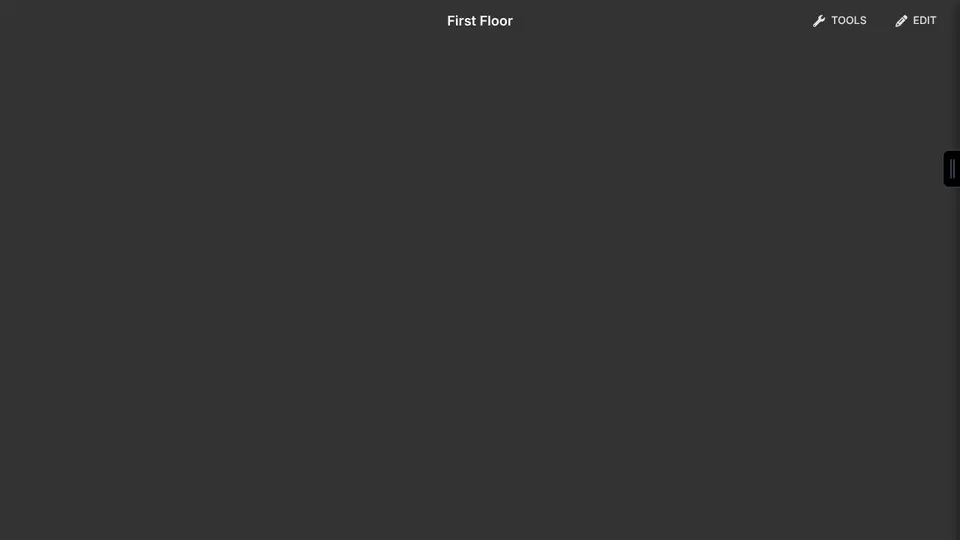

The image below shows an empty editor. This is what a new property looks like before any changes have been made. The editor has a couple major components:

1. 1
   Layout area

   Where you draw your layout.

2. 2
   Floor name

   In case you have multiple Floors.

3. 3
   Tools button

   Opens the side-panel with Help (keyboard shortcuts and help), Layouts (create and switch layouts), Floors (create and switch Floors), and Settings (adjust settings).

4. 4
   Edit button

   Changes into Edit Mode.

5. 5
   Sidebar tab

   Click to open, close or resize side-panel.

Click the Edit button to enter Edit Mode. The side-panel now has three tabs to help you draw and manage your layout.

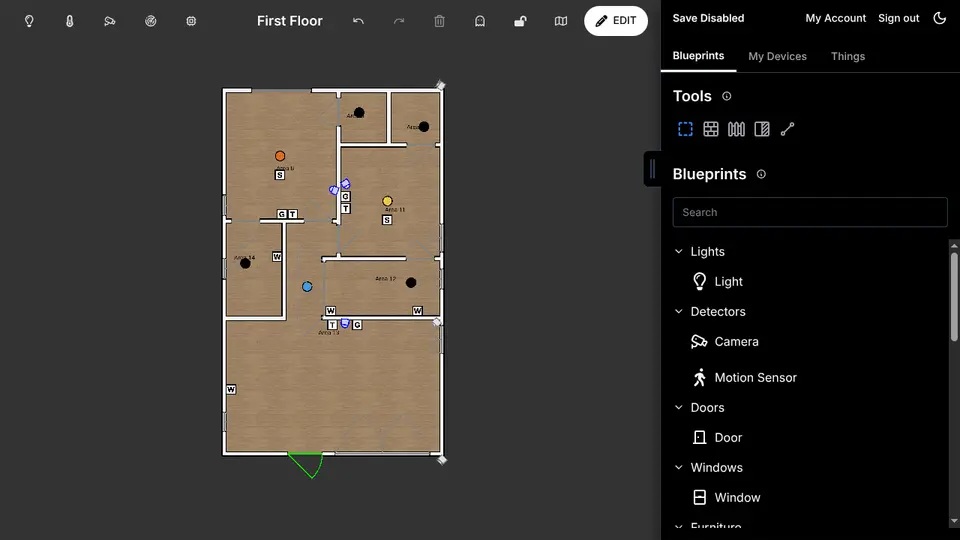

Blueprints

The Blueprints tab contains Tools and Blueprints.

By default the Select tool is enabled. This allows you to click objects in the layout to select them, as well as draw selection rectangles to select multiple items.

The other tools allow you to draw walls, fences, room dividers, etc. To draw a wall, click the wall tool, then click in the layout where the wall should start from, move your mouse to the next location, click, and keep going until you are happy. At that point, click the right mouse-button or hit Escape to stop. Do it again to exit the tool.

Blueprints can be dragged into the layout to add them to the layout. You can later click them to change their properties.

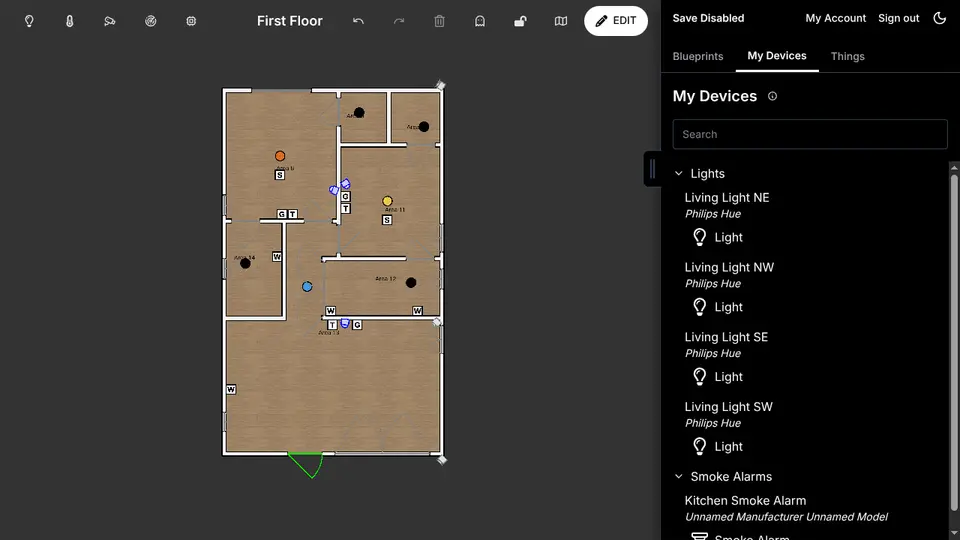

My Devices

The My Devices tab shows smart devices in your Home Assistant we have recognized that have not yet been added to the layout. These can be dragged into the layout in the same way as blueprints. These will stay connected to your Home Assistant device. If you e.g. pull in a light, it will match the state of your actual light, and you can turn it on/off by clicking it when not in edit-mode.

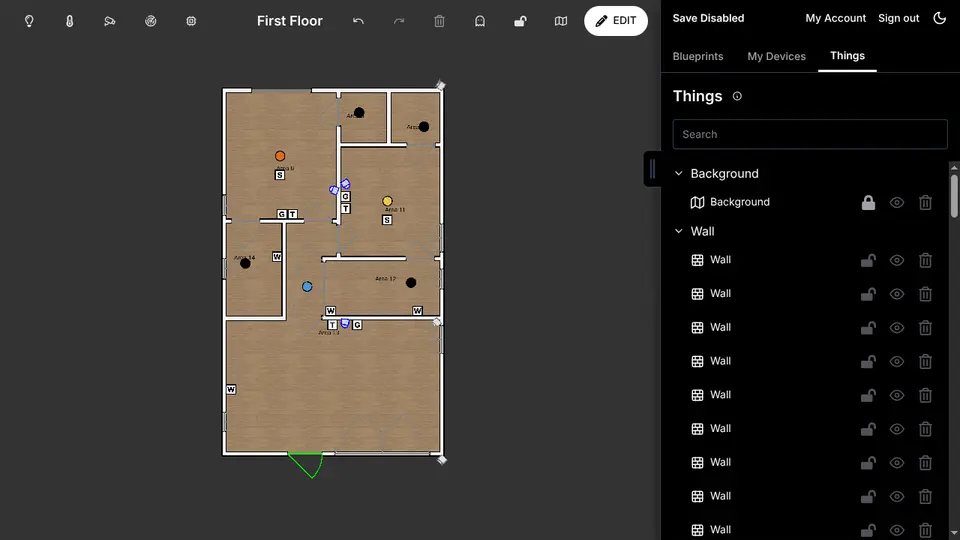

Things

The Things tab contains objects you have already added to your layout. Click them to select. Also note the icons to the right of each object:

Use these controls to move around the layout quickly:

On computer

On tablet / phone

Drawing your layout typically consists of these steps:

1. 1
   Draw walls

   Build out your floorplan.

2. 2
   Place objects

   Place doors, windows, lights, sensors and other objects.

When drawing walls, you can either free-hand it based on your own measurements of your home, or upload a reference floorplan and trace the walls.

Uploading A Reference Floorplan

1. 1
   Add the Background blueprint

   Go to Edit Mode, and drag the Background blueprint from the blueprints tab into the layout.

2. 2
   Select Background in layout

   Click the Background in the layout. The sidepanel now changes to show options for the background object.

3. 3
   Upload the image

   Click Upload Image to upload your background.

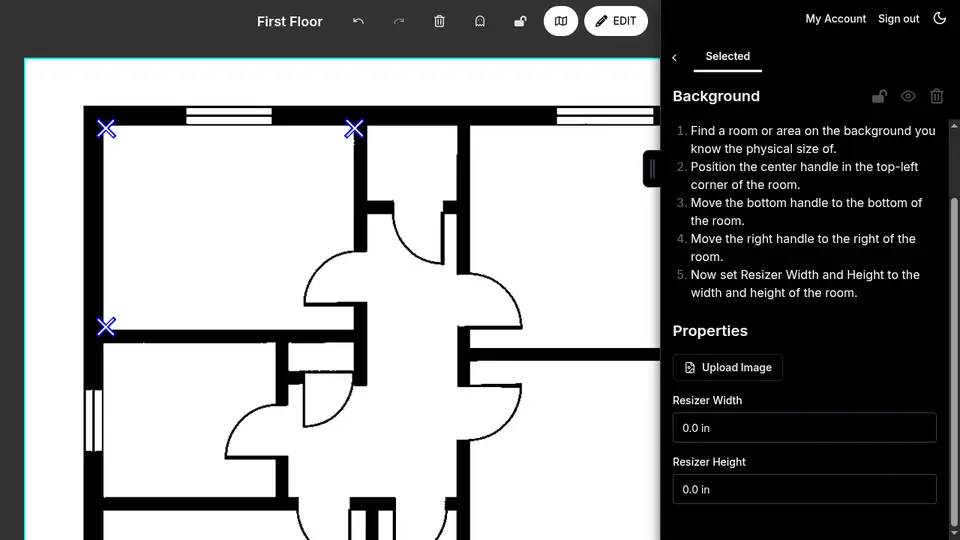

We now need to resize the background so its dimensions match that of the layout. In the picture below, note the blue crosses. We use these to mark an area in the floorplan we know the size of. Assume we know the size of the room in the picture below is 8ft x 6ft.

1. 1
   Position the top-left cross

   The top-left cross moves freely. Move it to the corner we want to measure from.

2. 2
   Position right and bottom crosses

   Move the right and bottom crosses out to mark the distances we want to measure from the top-left cross.

3. 3
   Set Resizer Width

   In the sidepanel, set Resizer Width to the actual distance between the top-left and top-right crosses, i.e. 8ft.

4. 4
   Set Resizer Height

   Set Resizer Height to the actual distance between the top-left and bottom-left crosses, i.e. 6ft.

The background will resize itself as you enter the measurements.

Other things to note:

Drawing walls

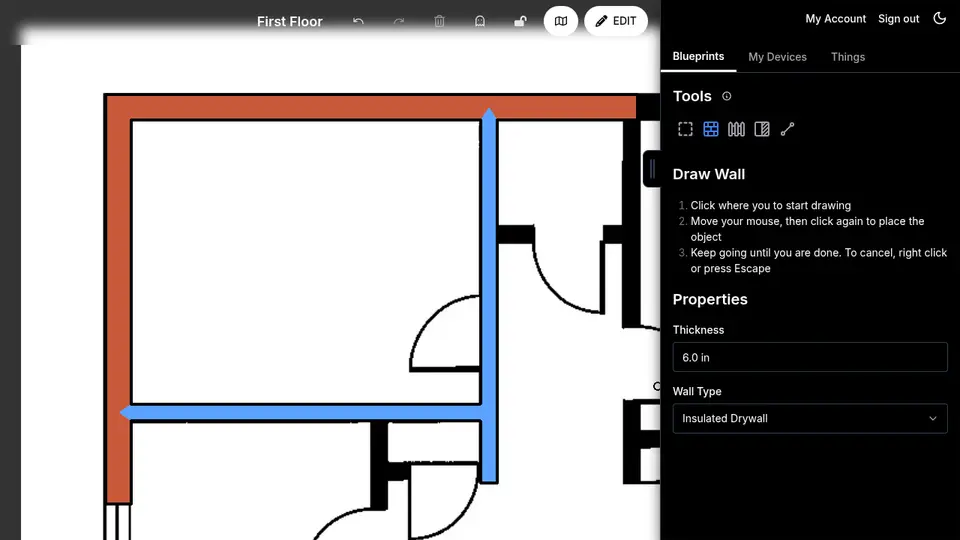

Once you have your background in place, do the following to draw your walls:

1. 1
   Select Wall tool

   Click the Wall tool in the Blueprints tab.

2. 2
   Set wall options

   When the wall tool is selected, set the desired thickness and wall type in the sidepanel.

3. 3
   Draw walls

   Click where you want the wall to start, then move your mouse to where the wall should end, and click again. Use the right mouse button or Escape to stop drawing.

Note:

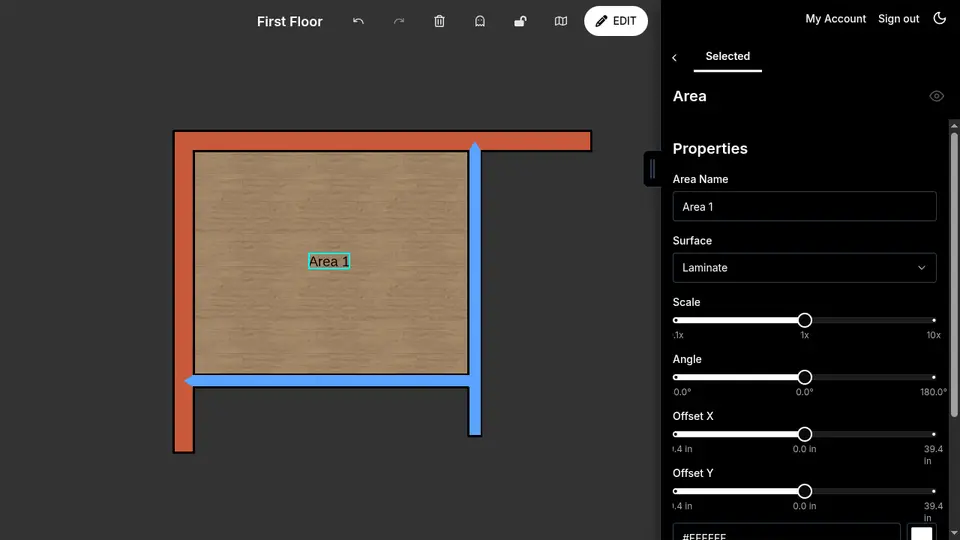

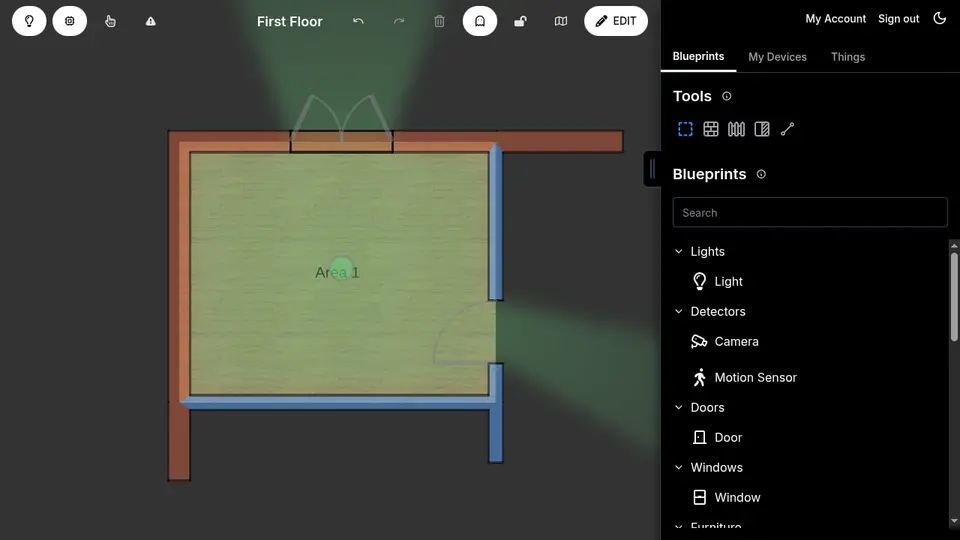

When you have enclosed a room, an area will show up, rendering a floor for your room. You can change the floor (surface) texture.

In Edit Mode, to see the area, click the Toggle Background button to hide the background. You can now click the area label to change the area name, surface texture, and other properties.

Placing objects

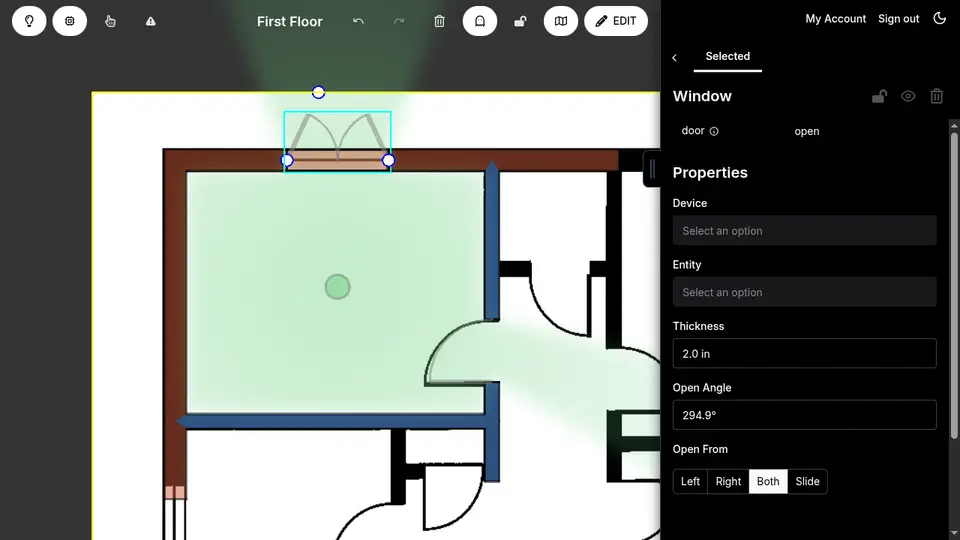

When placing doors and windows, you can enable Ghost Mode to see the background floorplan through the walls. Click the Ghost Mode button to the right of the Edit button to enable.

Objects can be placed both from the Blueprints tab or the My Devices tab by dragging them into the layout. Drag doors and windows on top of a wall to have them snap.

Most objects have properties that can be adjusted in the side-panel. Some, like walls, doors and windows also have grips that you can drag on to resize, shape or rotate them.

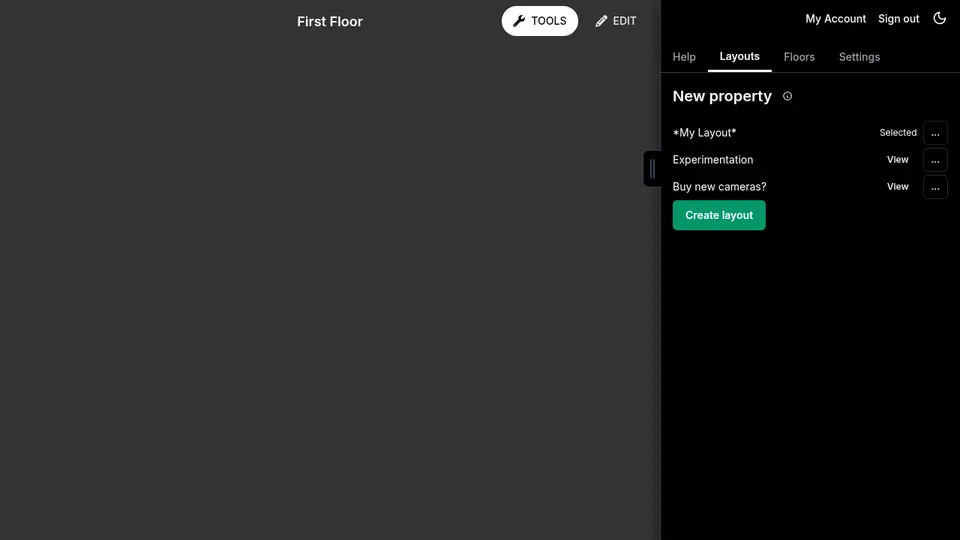

Go to the Layouts tab to see your layouts. By default you have one layout called My Layout. The layout saves all your objects. You can create additional layouts to experiment with things, or if you are planning out new additions to your home, such as buying new security cameras.

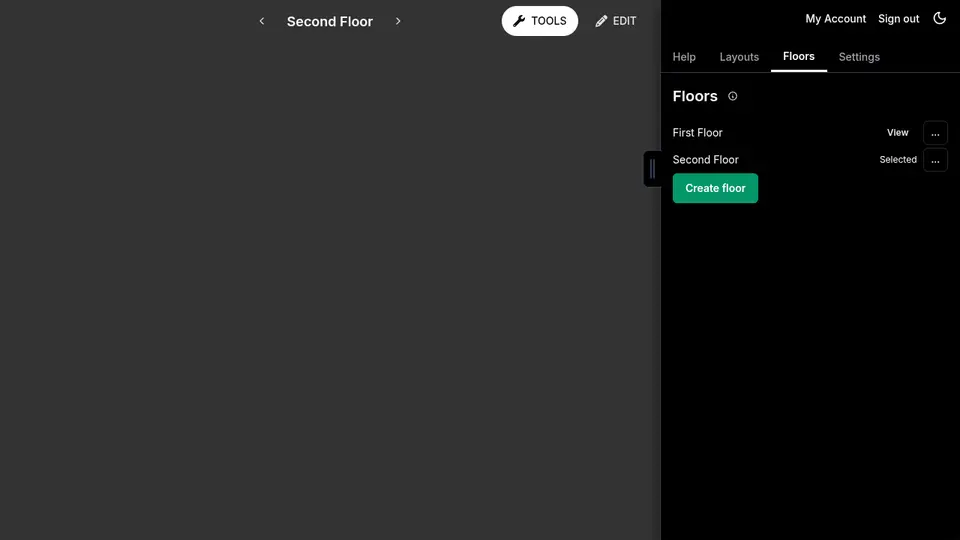

Go to the Floors tab to see your floors. By default you have one floor. Each layout can have multiple floors or levels.

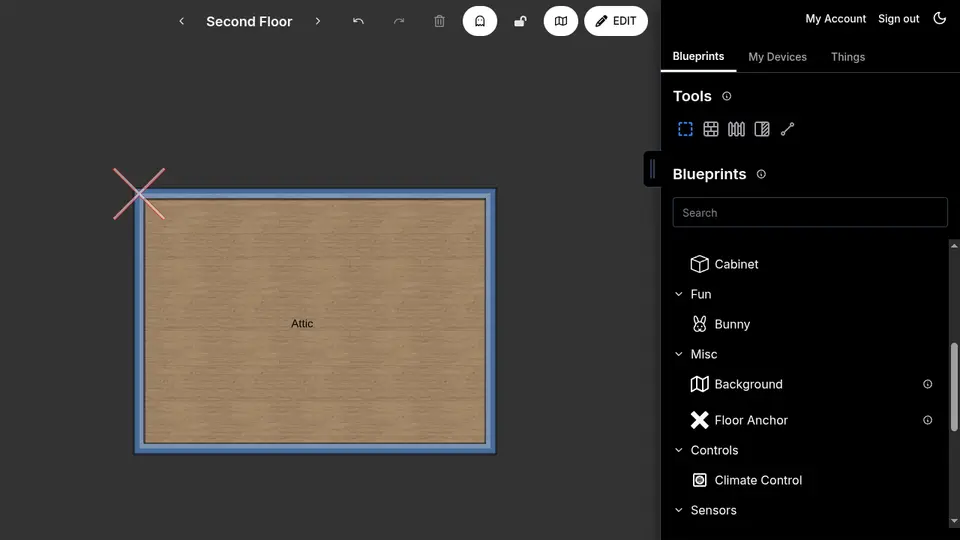

To align rooms across floors, use the floor anchor, and put it e.g. in the corner of a room that is present on both floors. The floor anchor shows on all floors, and allows you to make sure the rooms are set up in the right place relative to each other.
